H SPLIT CONCENTRIC

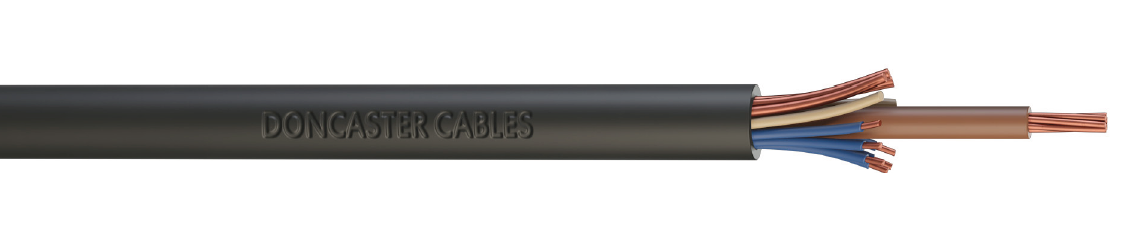

H SPLIT CONCENTRIC 25.0

Split concentric cables are predominantly used by Distribution Network Operators (DNO’s) when providing the final service connection to domestic properties. Split concentric cables are also suitable for sub main distribution and have been found to be particularly useful within high rise buildings and street lighting systems. These cables are designed to be installed in air, or for burial in free draining soil conditions
SKU: HSPLITCON725
Product Group: HSPLITCON
Supplier: Doncaster Cables
Contact Sales

Quick Facts

SKU
HSPLITCON725
Product Group
HSPLITCON
Specifications
37

Technical Specifications

Weight
844.65
Unit
1000
Conductor Size
25
Construction
The insulated neutrals and bare earth wires are laid in a concentric layer around the insulated phase conductor with PVC string separators separating the neutral and earths. This is then bound with a clear polyester tape and then PVC sheathed.
Standard
BS 4553-1
Table / Clause
Table 3
Conductor
Phase - Plain Annealed Copper Class 2 Stranded to BSEN60228 | Neutral - Plain Annealed Copper Class 1 Solid to BSEN60228 | Earth - Plain Annealed Copper Class 1 Solid to BSEN60228
Insulation
Phase - PVC Type TI1 to BS EN 50363-3 | Neutral - Blue Compatible Polymeric Compound (PVC)
Sheathing
PVC Type TM1 to BS EN 50363-4-1
Voltage Rating
600/1000V
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
70°C
Minimum Bending Radius
6 x diameter
Colour
Black
Core Colours
Brown phase, blue neutrals
Current Ratings
130 amps
Current Rating (In Air (A))
130 amps
Current Rating (In Ground (B))
150 amps
Nominal Stranding of Conductor (mm)
7/2.12
Nominal Stranding of CPC (mm)
4/2.25
Nominal Radial Thickness of Insulation (mm)
1.2
Nominal Radial Thickness of Sheath (mm)
1.5
Approximate Overall Diameter (mm)
18.3
Approximate Weight (kg/km)
848
Voltage drop (mV/A/m)
1.7
Cable Types
SINGLE PHASE SPLIT CONCENTRIC
Conductor Class to BS EN 60228
Class 2
Nominal CSA of Phase Conductor (mm²)
25
Nominal Makeup of Phase Conductor (mm)
7/2.14
Approx Combined CSA of Neutrals (mm²)
25
Nominal Makeup of Neutrals (mm)
11 x 1.70
Nominal Combined CSA of Earth (mm²)
16
Nominal Makeup of Earth (mm)
4 x 2.25
Bullet1
Manufactured in the UK
Bullet2
Manufactured with 100% renewable energy
Bullet3
Uses materials and manufacturing techniques designed to make the electricians life easier
Bullet4
BASEC Approved
