6242B LSNH

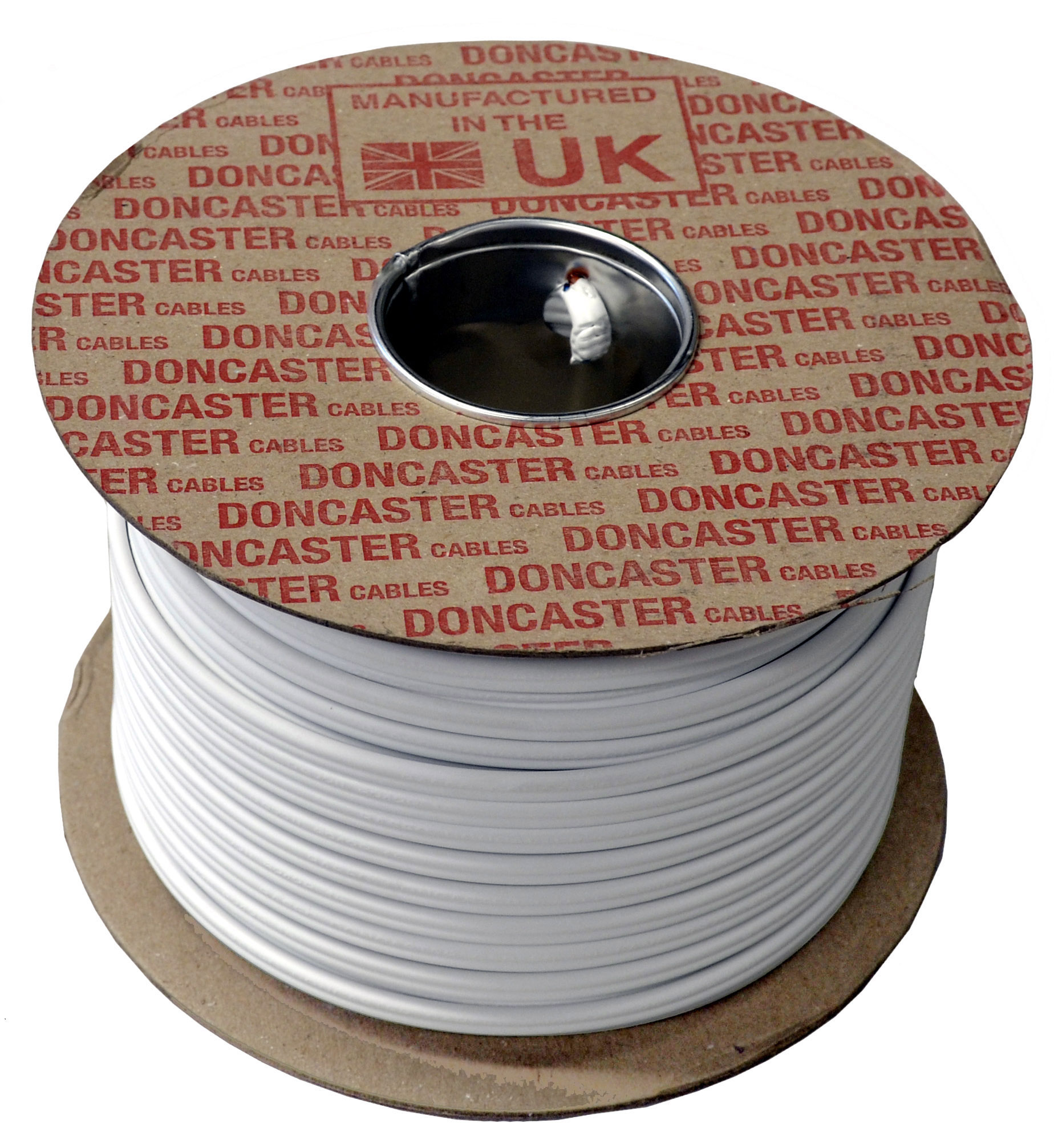

H 6242B 1.5 LSNH WHITE 2 BROWN CORES 100 MTR R
These cables are designed to be used in installations where smoke and acid gas emission would pose a major hazard in the event of a fire.
Designed for use in light industrial and domestic wiring. These cables are intended for fixed installation in dry or damp premises. These cables can be installed in conduit, in cable trunking and in cable ducting or where there is deemed little risk of mechanical damage these cables can be clipped direct, on cable tray, embedded or in free air. These cables are not intended to be laid underground.
SKU:
H6242B1.5W2BR100
Product Group:
6242B
Supplier:
Doncaster Cables
Quick Facts
SKU
H6242B1.5W2BR100
Product Group
6242B
Specifications
24
Technical Specifications
Weight
74.2
Unit
1000
Number of conductors
2 + CPC
Conductor Size
1.5
Construction
Plain Annealed Copper Conductor / XLPE Insulated / LSNH Sheathed with bare Circuit Protective Conductor
Standard
BS 7211:2012
Table / Clause
Table 5
Conductor
Plain Annealed Copper Class 1 or 2 to BS EN 60228
Insulation
Thermosetting XLPE Type GP8 to BS 7655-1.3
Sheathing
Thermoplastic LSNH Type LTS 2 to BS 7655-6.1
Voltage Rating
300/500V
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
90°C
Minimum Bending Radius
6 x diameter
Reel Dimensions (mm)
225x225x150
Core Colours
Blue and Brown
Current Ratings
For current ratings refer to table 4E2 of BS7671 IEE Wiring Regulations.
Nominal Stranding of Conductor (mm)
1/1.38
Nominal Stranding of CPC (mm)
1/1.13
Nominal Radial Thickness of Insulation (mm)
0.7
Nominal Radial Thickness of Sheath (mm)
0.9
Overall Diameter Lower Limit (mm)
4.4 x 8.1
Overall Diameter Upper Limit (mm)
5.3 x 9.7
Approximate Weight (kg/km)
80
